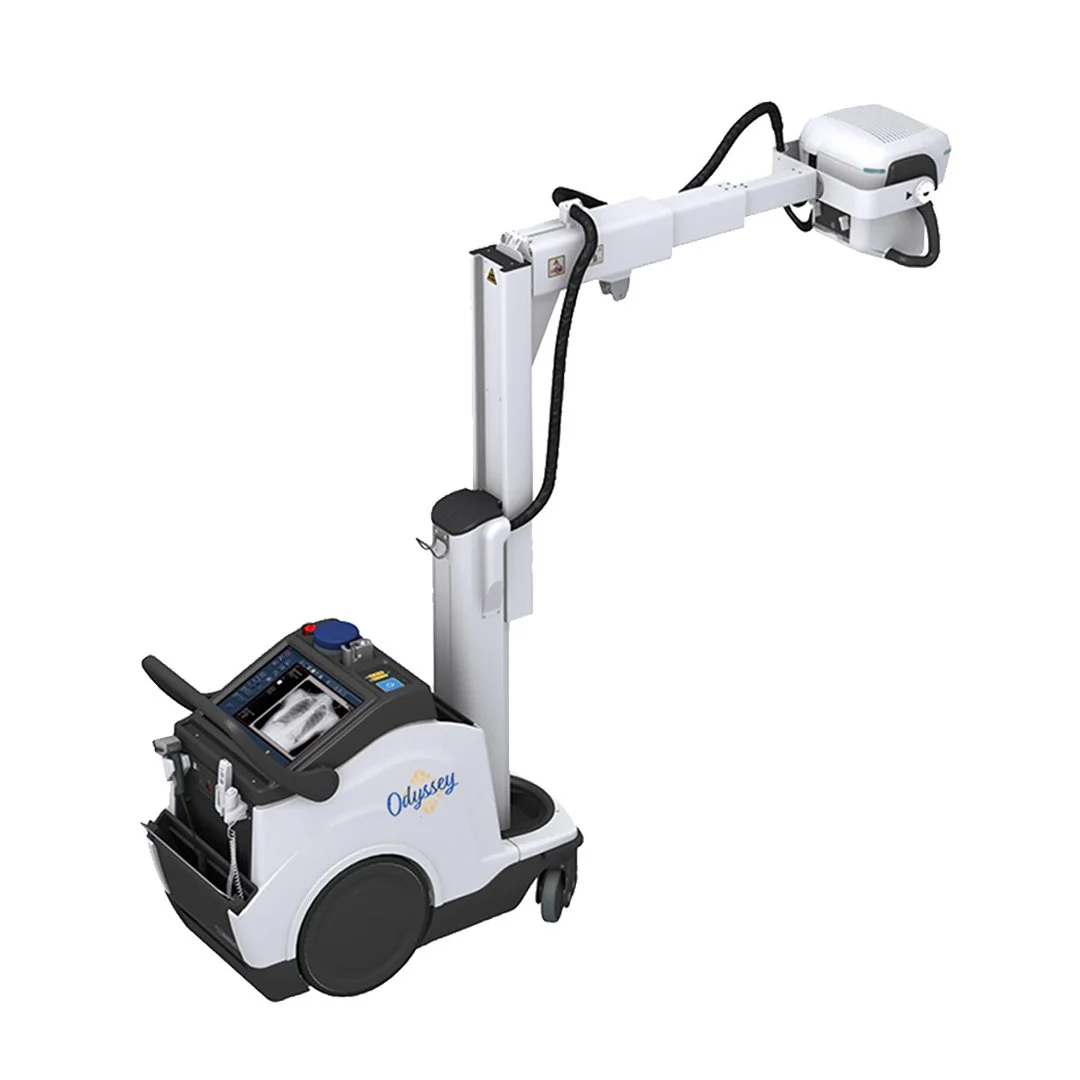

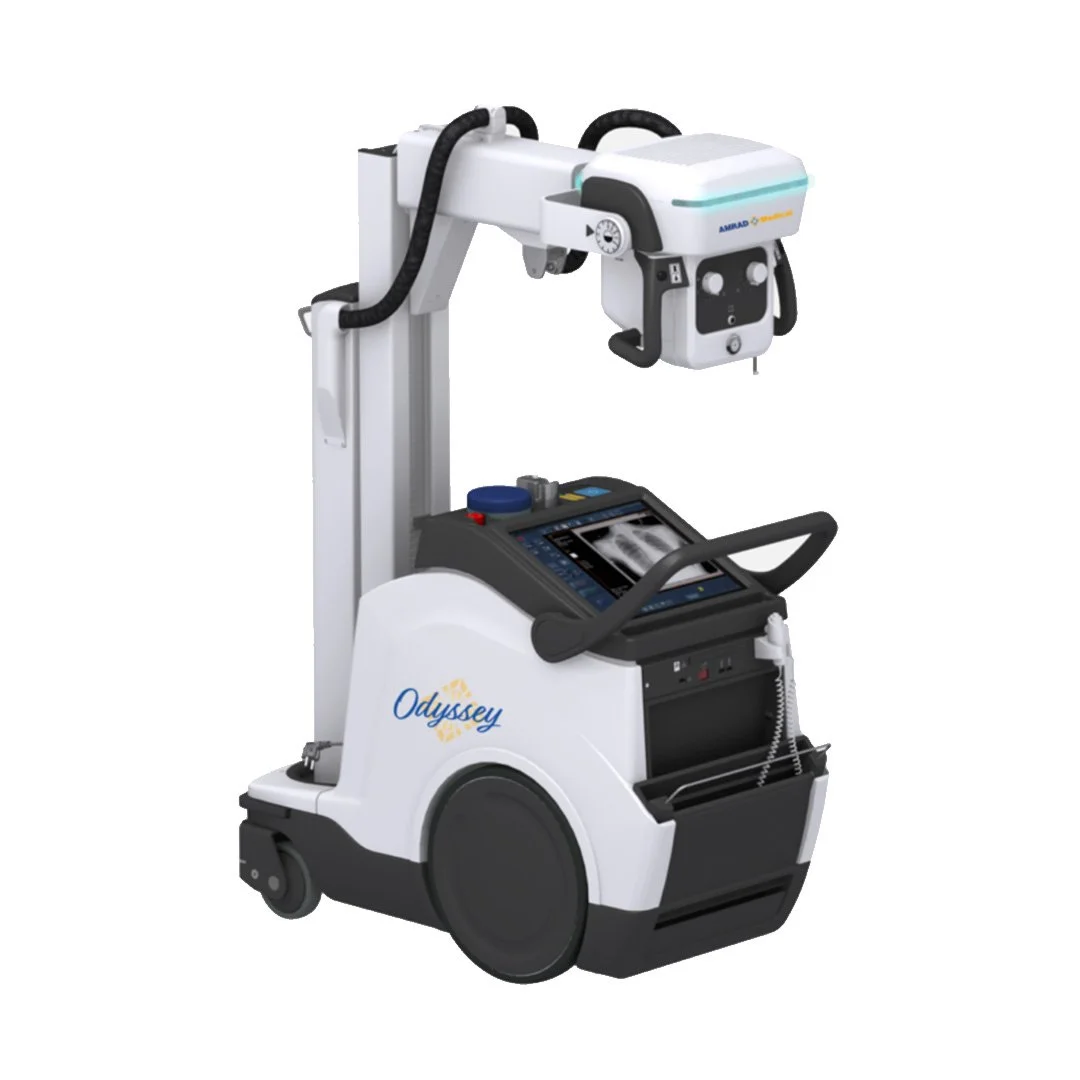

Odyssey System Features

The Odyssey is a premium mobile digital radiographic system that utilizes a powerful 32kW high-frequency generator that provides high constant output power from any standard wall outlet.

Exceptional image quality is achieved with Canon DR Pro Series Wireless detectors. The fully integrated 19-inch color touchscreen allows the operator to preview the image and access image enhancement tools. Thanks to the battery charger with Energy Recovery Technology, the unit can operate longer with less interruption achieving up to 800 exposures.

Versatile Models

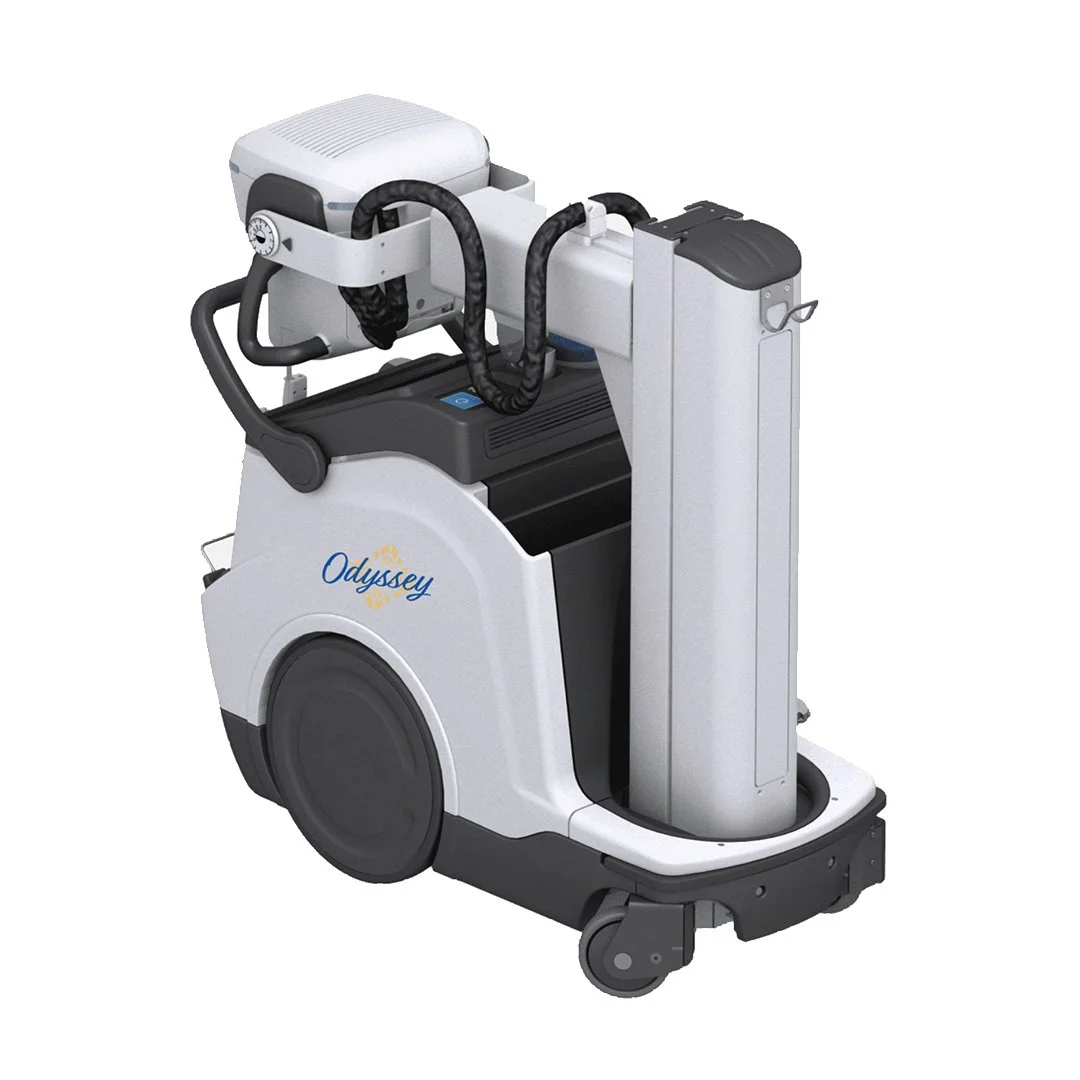

The unit’s fully compacted size of 50.7 in. (129 cm) H x 48 in. (122 cm) W x 21.2 in (54 cm) D allows for access and increased maneuverability into confined areas.

• 3-Step Telescopic Arm

  • Max: 48 in. (122 cm)

  • Min: 27.7 in. (70.5 cm)

  Telescopic Column

  • - Max: SID: 79.5 in. (202 cm)

  • - Min: Focal Distance Floor

  • <20.8 in. (53 cm)

  Column Rotation

  • ±317º
