Agility C-Arm Features

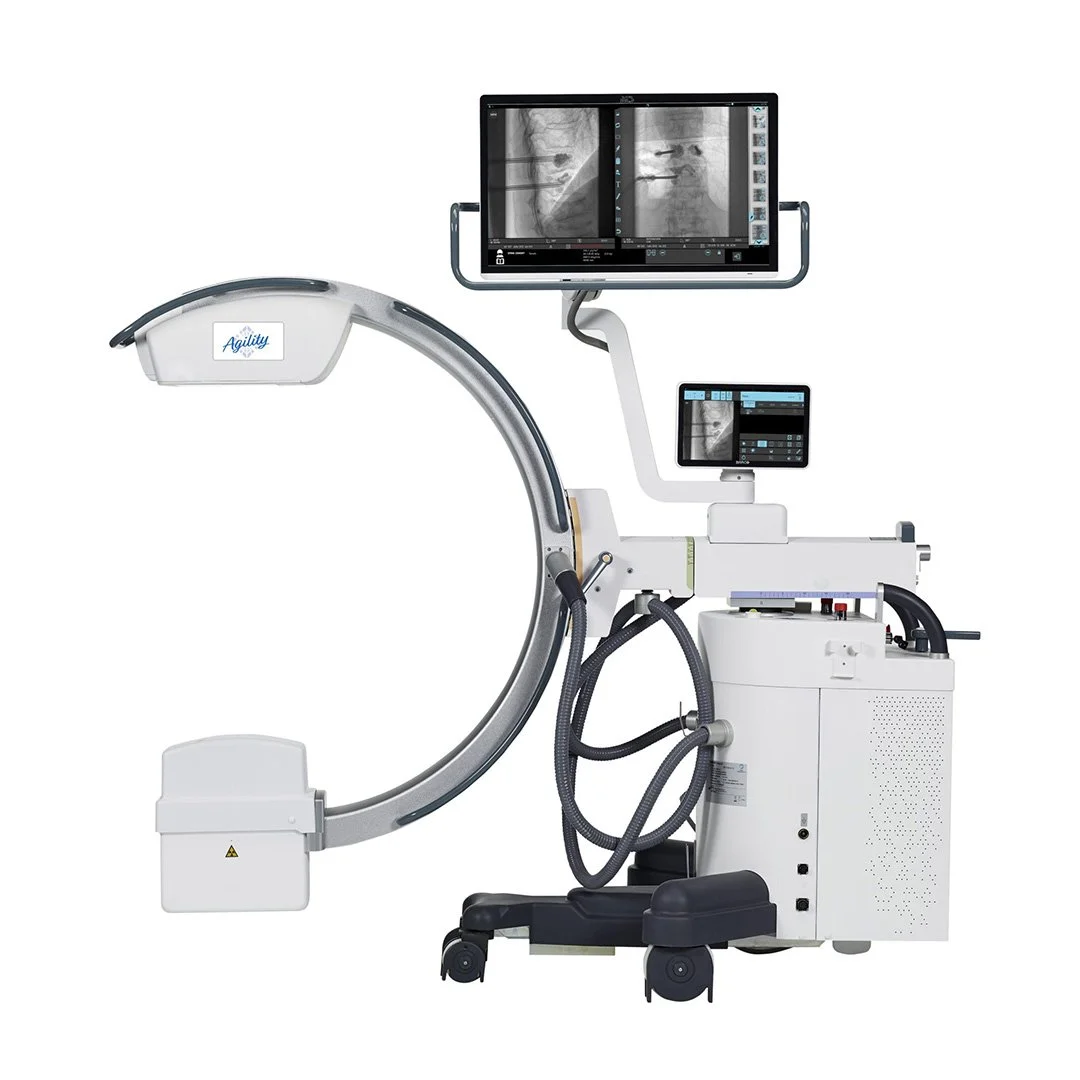

• All-in-one c-arm unit, reduced footprint

• Large C-arm depth for maximum accessibility, S.I.D. >108cm.

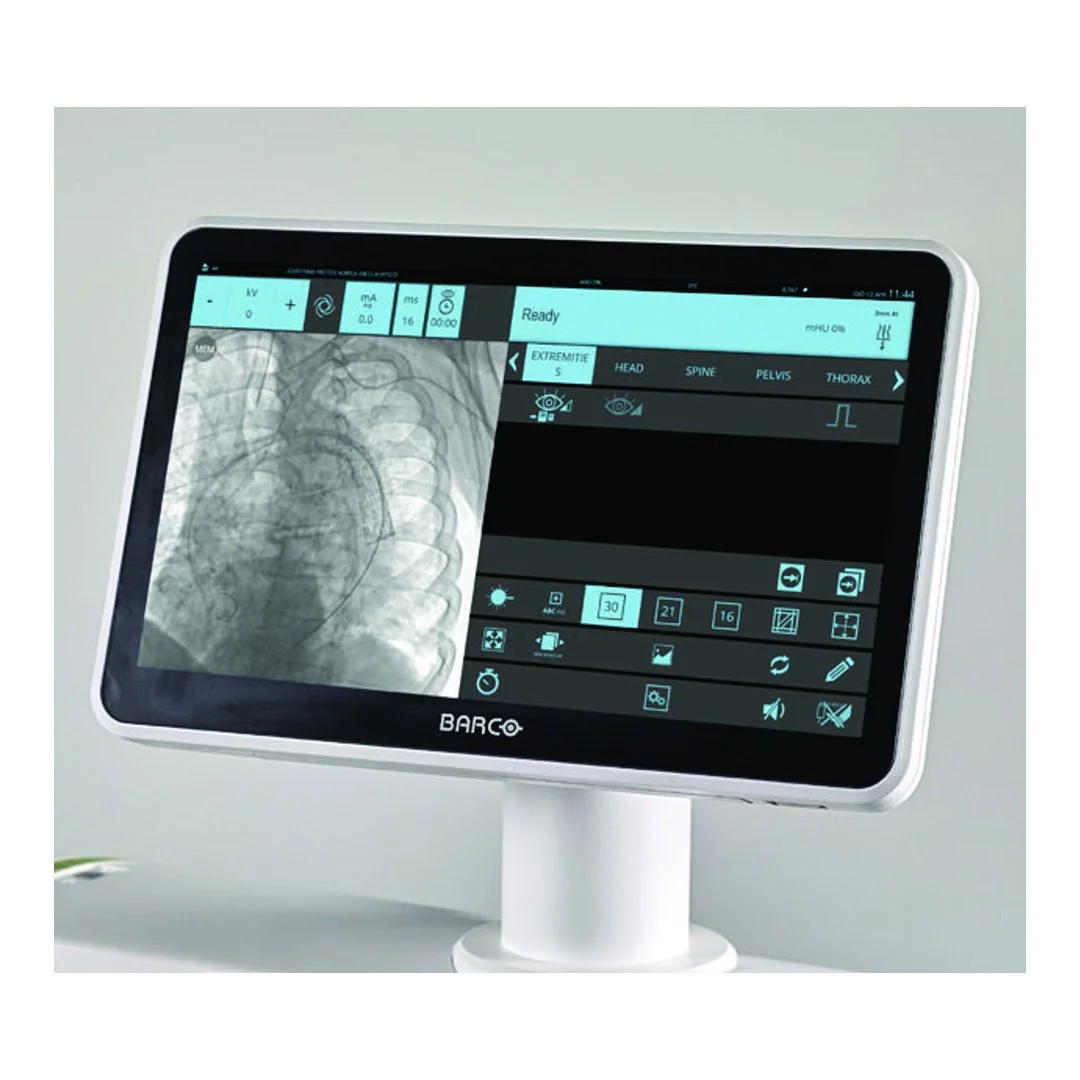

• Smart operator console: all controls with multi-touch user interface, displaying live image

• Single unit system, all components are integrated in the C-arm stand without monitor cart

• Very small footprint, ideal for OR with limited surface

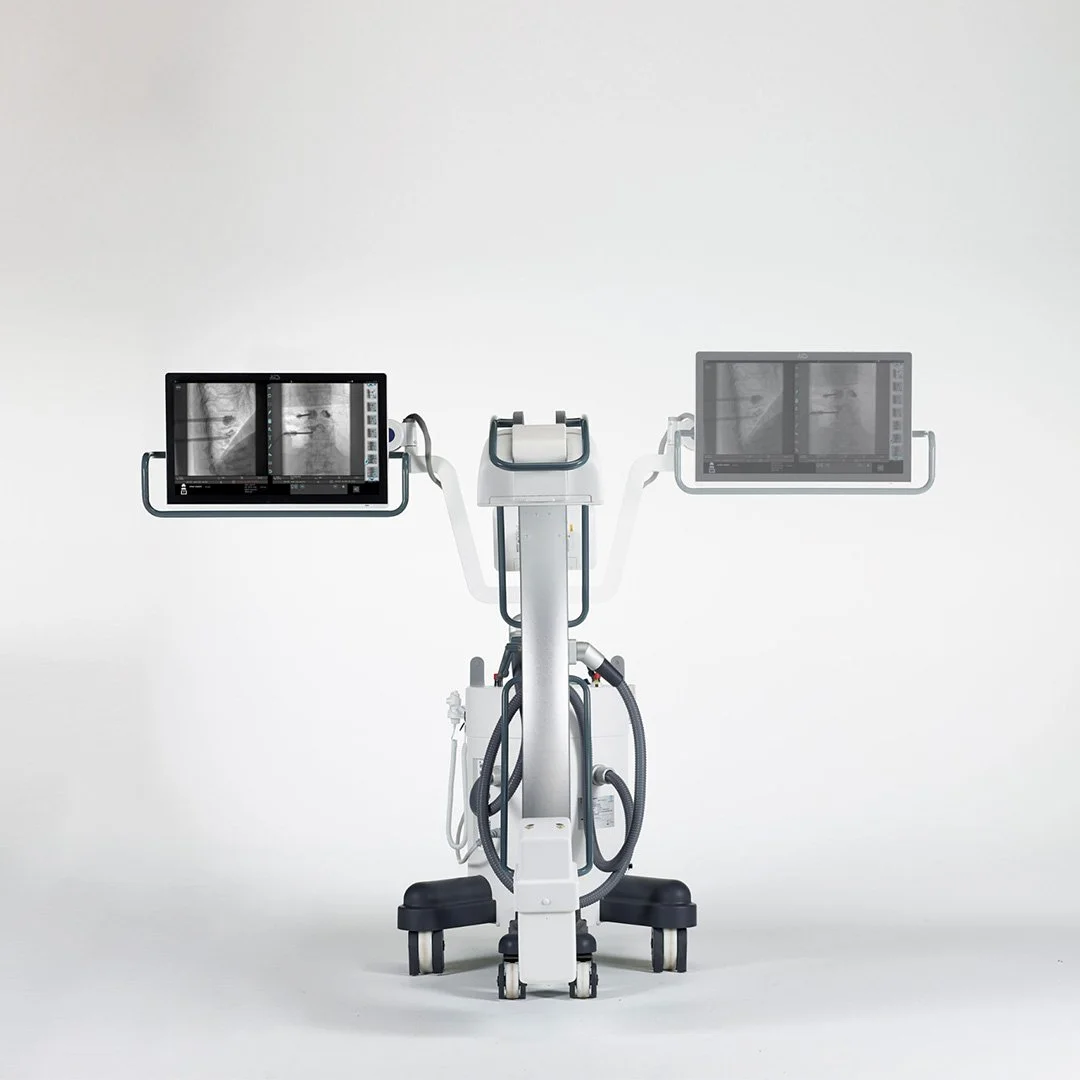

• 27", 4K medical multi touch monitor on an articulating arm, height & angle adjustable; equivalent to 2x19" monitors, displaying simultaneously live and reference images

• Anti scatter, removable grid for low dose surgery and grid less procedures

• 21x21cm or 30x30cm amorphous Silicon (aSi) flat panel detector

• Full-touch “smart” user interface

• Extended C-arm free space

• Image free of distortion

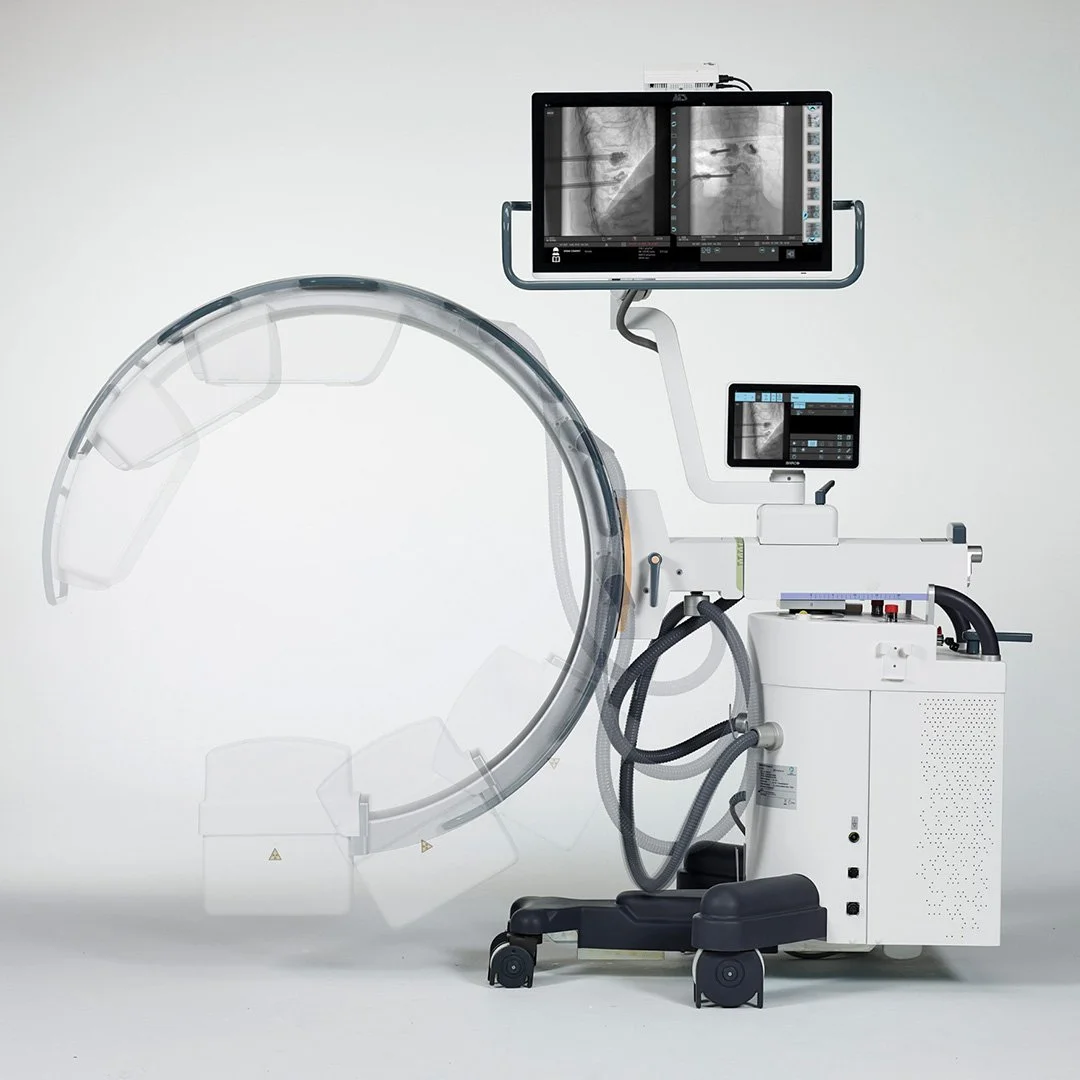

• +65° -95° orbital rotation

• Special soft covers base protector against accidental collisions

• An optional additional display unit is available offering secondary viewing capability with WiFi video transmission
